Smart Illuminators
INTEGRATED ILLUMINATORS FOR SPACE AND COST SAVINGS
Illuminators are often used for vision inspection.
A standard illuminator is usually controlled by a driver. In case a system uses many illuminators, there will be as many drivers on the machine.
The analysis highlighted the following improvement points:
- Would it be possible to carry out the functions of the drivers in an alternative way, reducing footprint and costs?
- Would it be possibile to reduce the cable length, which in some case is routed to main cabinet (power – trigger) then back to LED driver (strobe)?
AV Electronics redesigned the components, integrating what is needed directly on the illuminator itself.

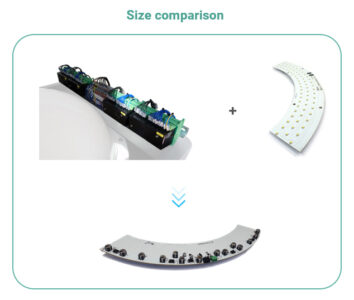

NEW INTEGRATED UNIT: SMART ILLUMINATORS

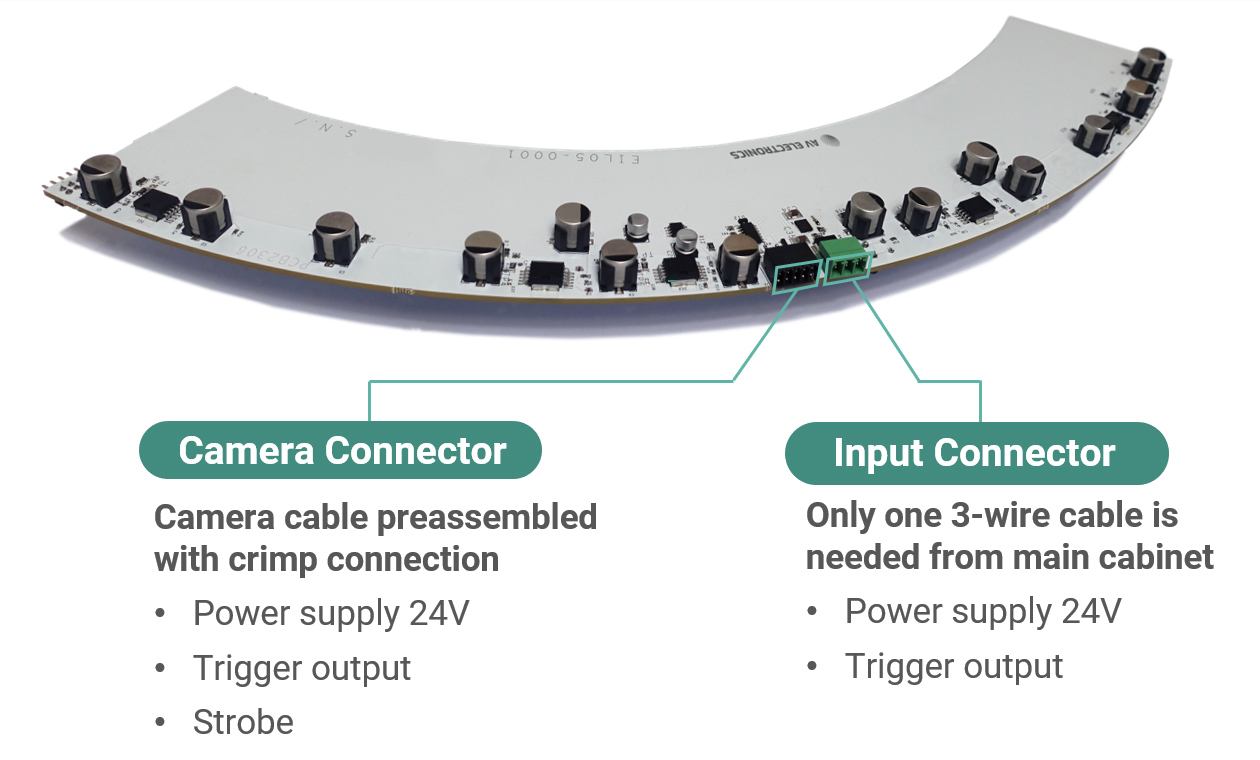

Both the camera connector and the input connector are integrated on the illuminator, thus creating a plug-in and smart component able to communicate bi-directionally with camers.
This pre-assembled integration reduces needed wires, components and spaces.
TECHNICAL FEATURES
- Firing Time Control Brightness
- 23V power supplu
- E-Fuse for reverse supply protection
- No inrush current (2 Sec. Soft Start)
- Six integrated driver 2 x 2A each
- 72 white LEDs @2A peak power 450W
- Supply current 0.3A 25mSec strobe 250µS
- Current rise time 1µs
- Turn on delay < 3µs
- Strobe clipped at 750µS max
- Test push button
- 4 layer 2mm PCB for optimal thermal transfer
- Ground plane for minimum inductance
BENEFITS
- SPACE for components reduced by 90%
- COST for components reduced by 40%
- TIME for assembly reduced by 75%
- EFFICIENCY improvement across entire supply chain
- DISTINCTIVE and ADVANCED technological solution
